HZS240 Environmental-Protect Concrete batching plant/tower

Some characters of HZS240 Environmental-Protect ready mixed concrete batching plant

HZS240 Environmental-Protect Concrete batching plant/tower
HZS240 Environmental-Protect Concrete batching plant/tower

1.Adopt combined structure and modular structure design, which maintains convenient installation& removal and safe

2.On the basis of combining advantages of various foreign concrete batching plant&stations and advanced technology

3.Mixing and aggregate lifting system adopt MAO4000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;

4.Adpots PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintaining

5.With fully-closed tower, aggregate conveying system and dedusting system can effectively reduce environmental pollution arising from dust and noise.

6.Aggregate batching system adopts PLD6400 concrete batcher which offers efficient and accurate measurement;

7.Water is flow-metering, simple and practical, highly accurate dosing.

8.Powder lot is electronic measured, highly accurate dosing;

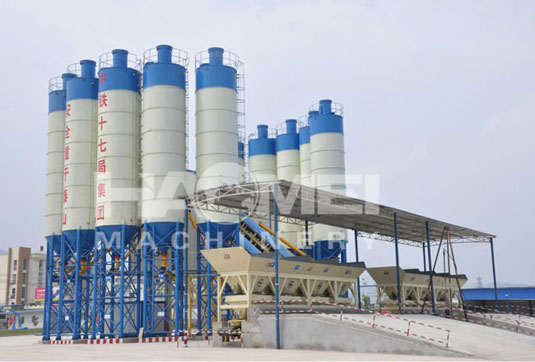

Here we can see some pictures of this commercial concrete batching plant

HZS240 stationary cement mixing plant with hot system



Technical parameters of this batching plant

Specification Value
Productivity in theory(m3/h) 240
Mixer MAO4000
Capacity of Mixer(m3) 3
Mixer Power(kw) 150
Discharge Height (m) 3.8(for customers choice)
Aggregate Bin (Quantity) 4
Aggregate Bin Capacity (m3) 4.8
Max. Weighing Value of Aggregate(kg) 1800
Max. Weighing Value of Cement(kg) 800
Max. Weighing Value of Water(kg) 1500
Max. Weighing Value of Additive (kg) 60
Aggregate Measuring Accuracy(%) 2
Water Measuring Accuracy(%) 1
Cement Measuring Accuracy(%) 1
Additive Measuring Accuracy(%) 1
Cement Silo Optional
Cement Screw Conveyor Optional
Cement Silo Capacity Optional
Control Mode Auto/Semi Control
